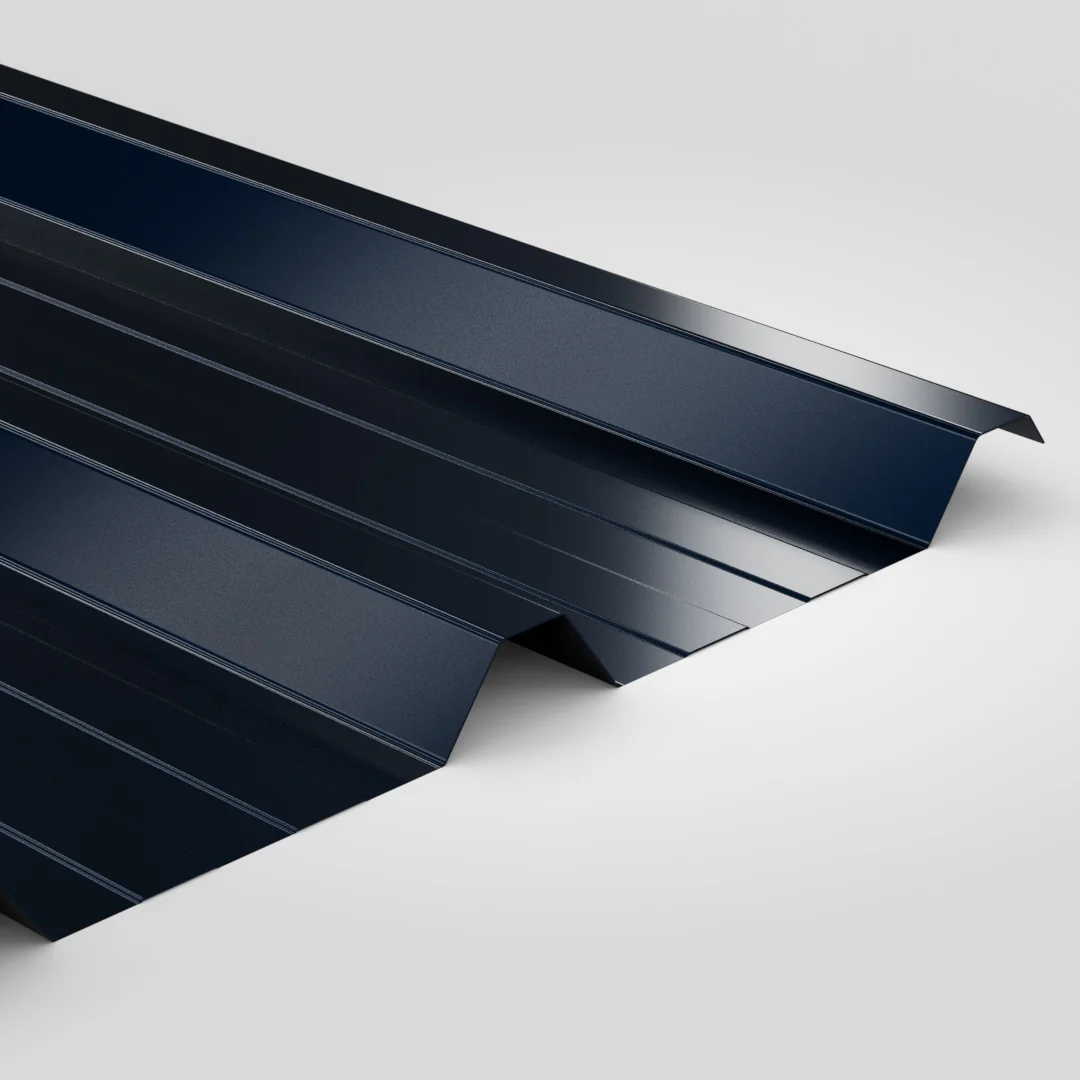

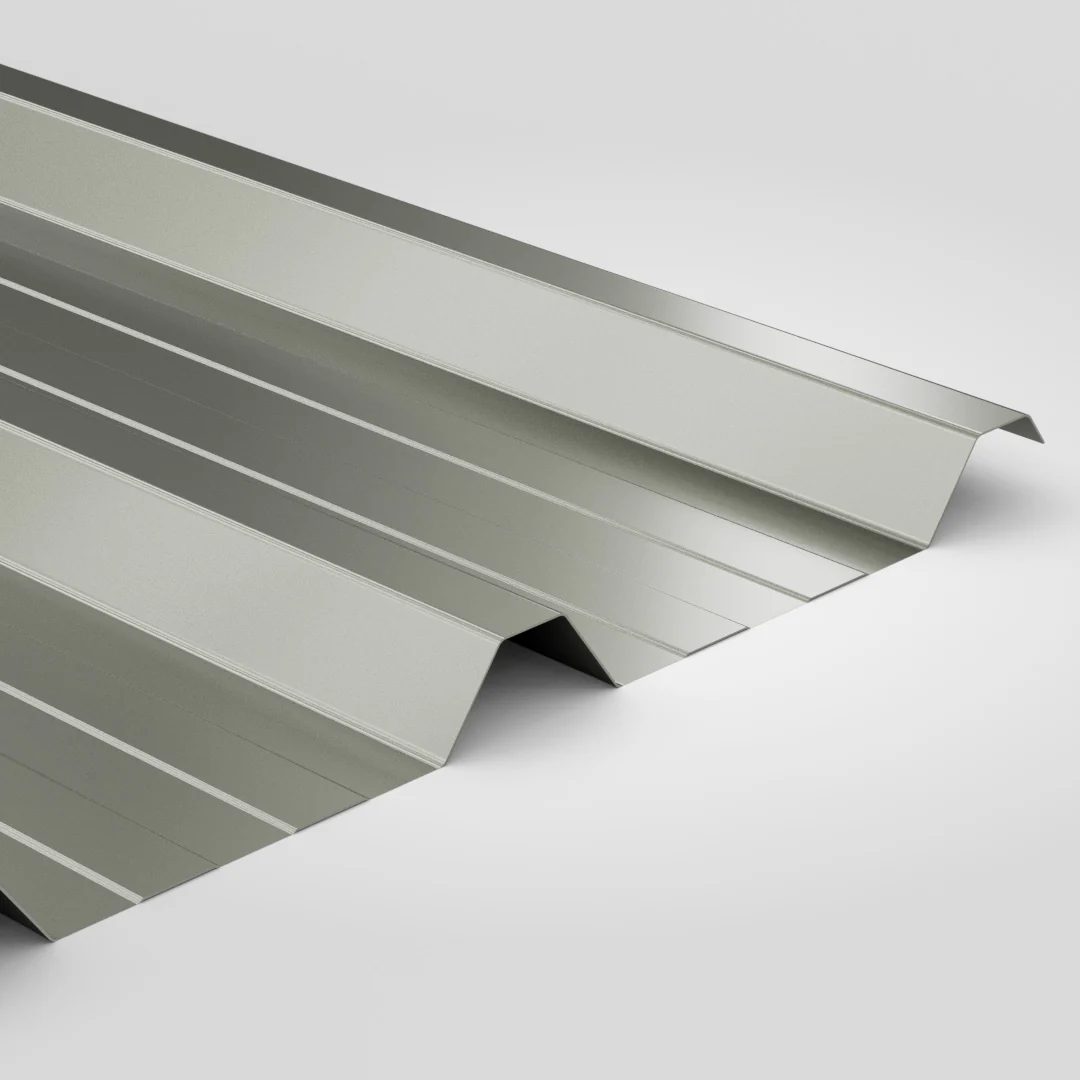

32/1000 Box Profile Roofing Sheet – Polyester Coated

The 32/1000 Box Profile Roofing Sheet is a strong and versatile steel roofing sheet suitable for agricultural, industrial and commercial buildings. Manufactured from galvanised steel with a durable polyester coated finish, these sheets provide long lasting weather protection and excellent structural performance.

The 32mm profile depth provides strong spanning capability while maintaining a clean appearance. With a 1000mm cover width, these sheets are ideal for roofing farm sheds, workshops, garages, storage buildings and industrial units.

Sheets are available in a variety of lengths and are quick to install, making them a popular choice for both new build and refurbishment projects.

Key Features

• 1000mm cover width
• Durable polyester coated galvanised steel
• Strong 32mm box profile
• Suitable for agricultural and industrial roofing
• Minimum roof pitch from 5°
• Optional anti-condensation felt available
• Lengths available up to 7100mm

Technical Data

Cover width	1000 mm
Profile height	32 mm
Centre-to-centre distance	200 mm
Steel thickness	0.5 mm and 0.7 mm
Coating	Polyester coated galvanised steel
Minimum sheet length	1000 mm
Maximum sheet length	7100 mm
CE marking	BS EN 14782
Tolerances	BS EN 14782

Profile Dimensions

Cover width	1000 mm
Rib spacing	200 mm centres
Profile height	32 mm

Load / Span Table – Roof Profile

Loads in kN/m² | Spans in metres

Imposed Load

Span Condition	1.20	1.30	1.40	1.50	1.60	1.70	1.80
1 Span	3.78	3.23	2.78	2.42	2.13	1.78	1.50
2 Span	2.72	2.38	2.10	1.86	1.67	1.50	1.36
≥3 Span	3.29	2.88	2.55	2.27	2.03	1.83	1.66

Wind Suction

Span Condition	1.20	1.30	1.40	1.50	1.60	1.70	1.80
1 Span	3.27	2.78	2.40	2.09	1.84	1.63	1.45
2 Span	2.99	2.62	2.32	2.07	1.85	1.67	1.51
≥3 Span	3.61	3.17	2.81	2.50	2.25	2.03	1.84

Always check both imposed load and wind suction when determining allowable spans for roof sheets.
