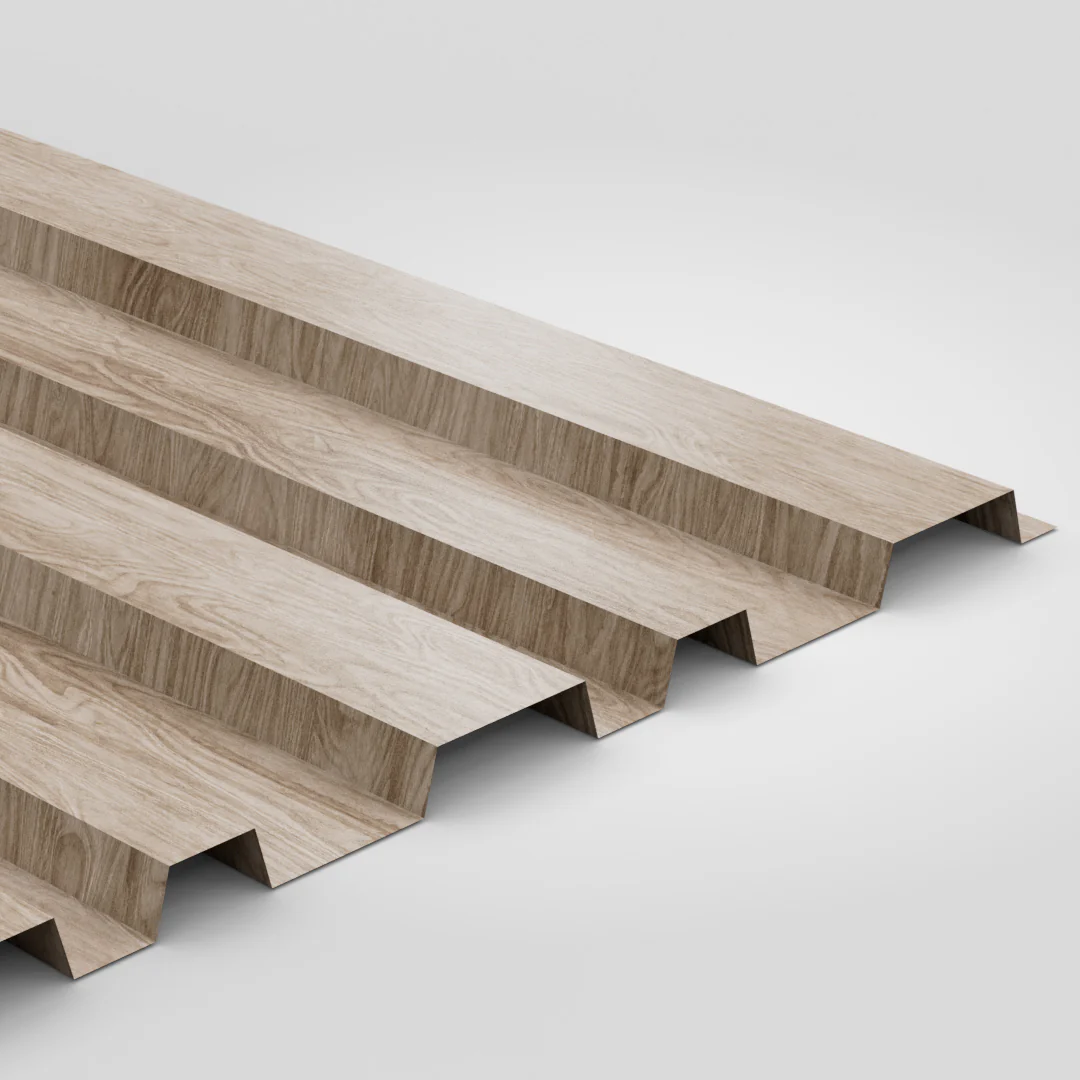

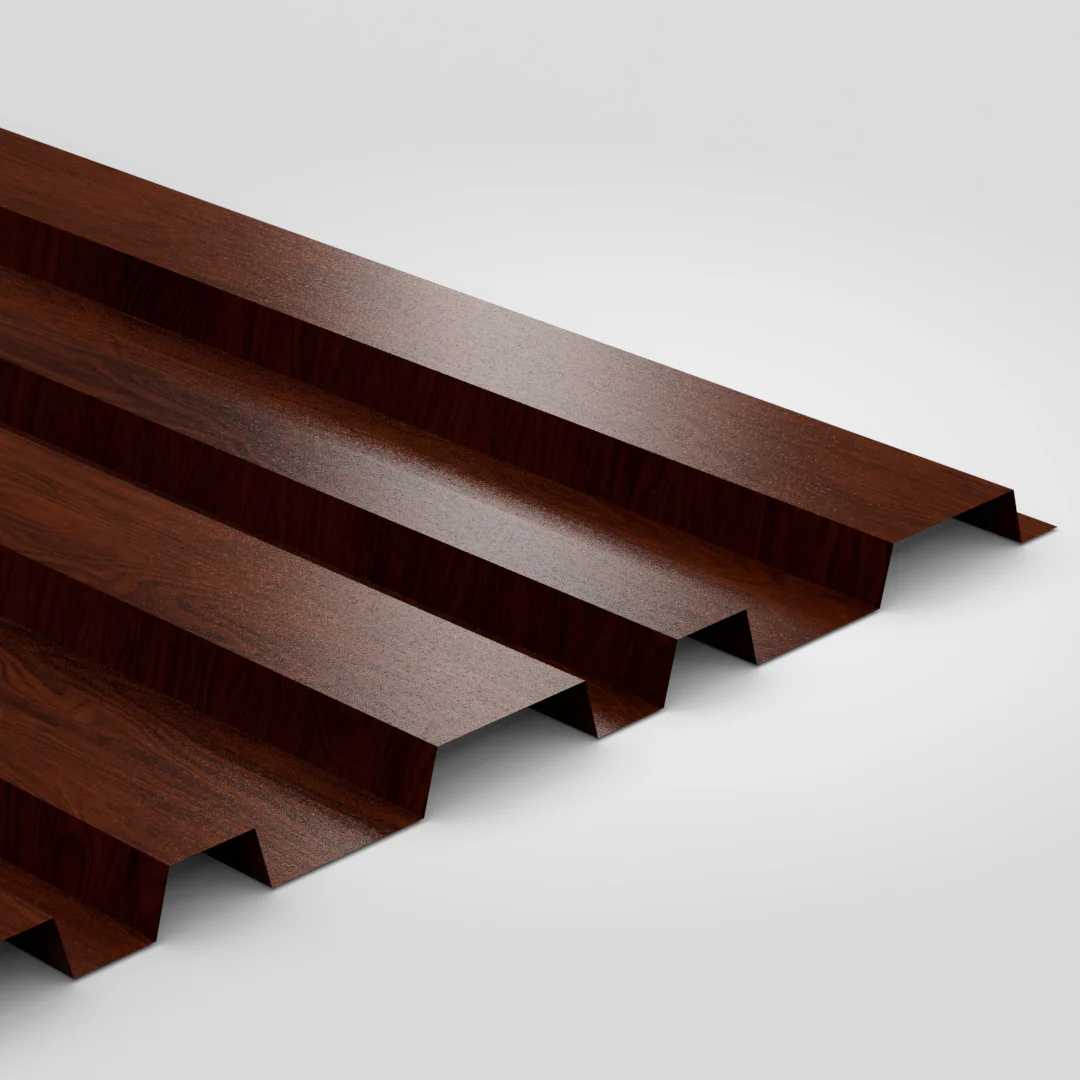

Board & Batten Steel Cladding Panel

The Board & Batten Steel Cladding Panel is a modern cladding system designed to recreate the traditional board and batten architectural style using durable steel panels. Manufactured from galvanised steel and available in Woodgrain, Polyester or PVC Plastisol coated finishes, these panels provide excellent weather resistance, long term durability and a clean architectural appearance.

Designed specifically for vertical wall cladding applications, the profile creates the distinctive board and batten shadow lines widely used on modern homes, extensions and garden buildings. When installed with the correct laps, the panels provide a consistent 820mm cover width.

Panels are supplied cut to length to suit your project requirements, helping reduce waste and making installation quicker and easier.

The Board & Batten cladding system is particularly popular on residential and domestic buildings, providing the visual appearance of traditional timber cladding while benefiting from the strength and low maintenance of coated steel.

Key Features

820mm cover width when lapped
Cut to length to suit project requirements
Durable galvanised steel construction
Available in Woodgrain, Polyester or PVC Plastisol finishes
Traditional board & batten architectural appearance
Designed for vertical wall cladding applications
Low maintenance alternative to timber cladding

Available Finishes

Woodgrain Ash
Woodgrain Natural
Woodgrain Walnut
Polyester Colours
PVC Plastisol Colours

Technical Data

Cover width	820 mm (when lapped)
Application	Wall cladding only
Steel thickness	0.5 mm and 0.7 mm
Coating	Woodgrain, Polyester or PVC Plastisol coated galvanised steel
Minimum panel length	1000 mm
Maximum panel length	6000 mm
Manufacturing standard	BS EN 14782
Tolerances	BS EN 14782

Typical Applications

Residential exterior cladding
House extensions
Garden rooms and outbuildings
Garages and workshops
Modern residential developments

Board & Batten steel cladding panels are designed for wall cladding applications and should be installed in accordance with appropriate fixing and installation guidelines.

Cladding

3m Steel Woodgrain Wall Cladding Panel

Board & Batten Steel Cladding Panel

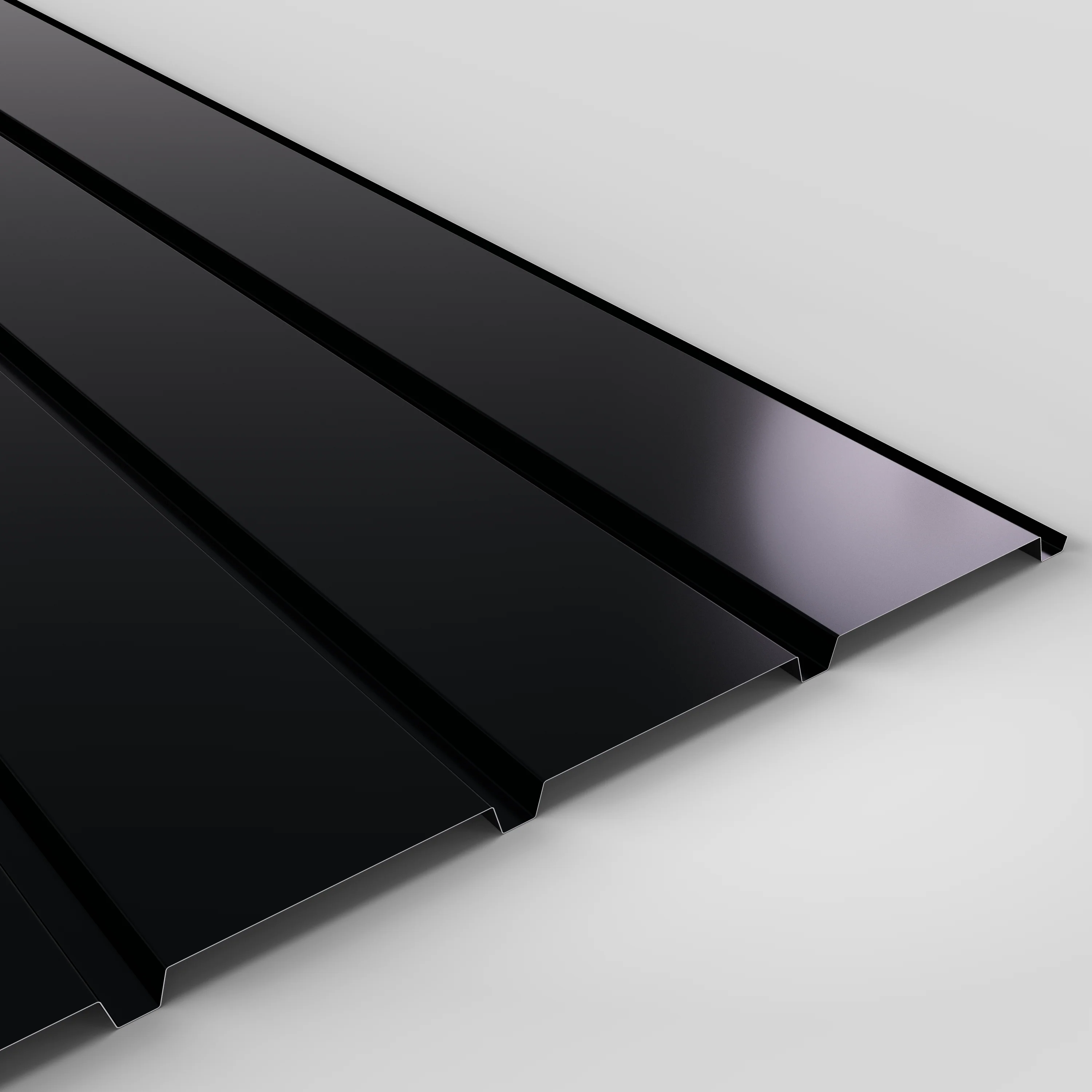

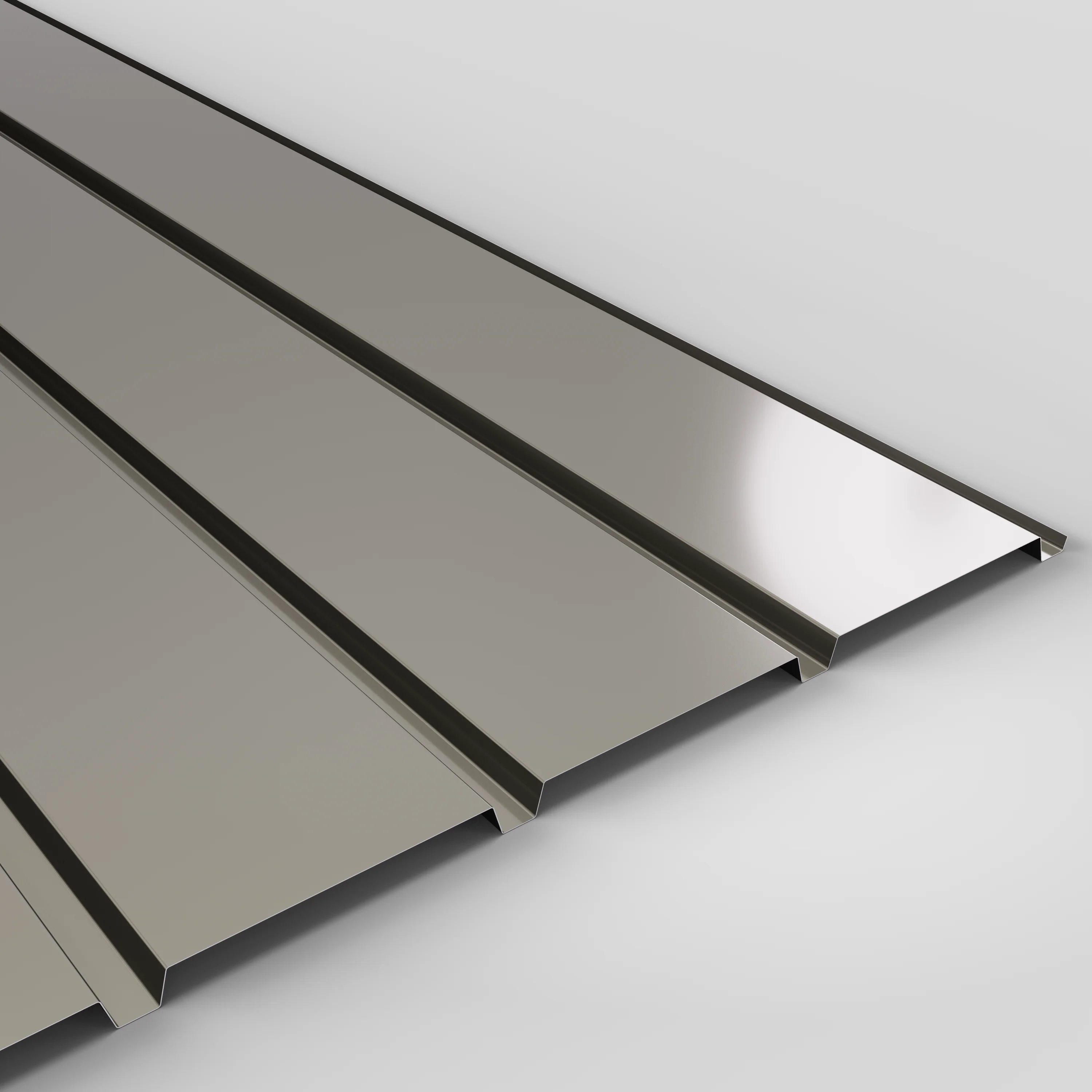

Test Roof Sheet

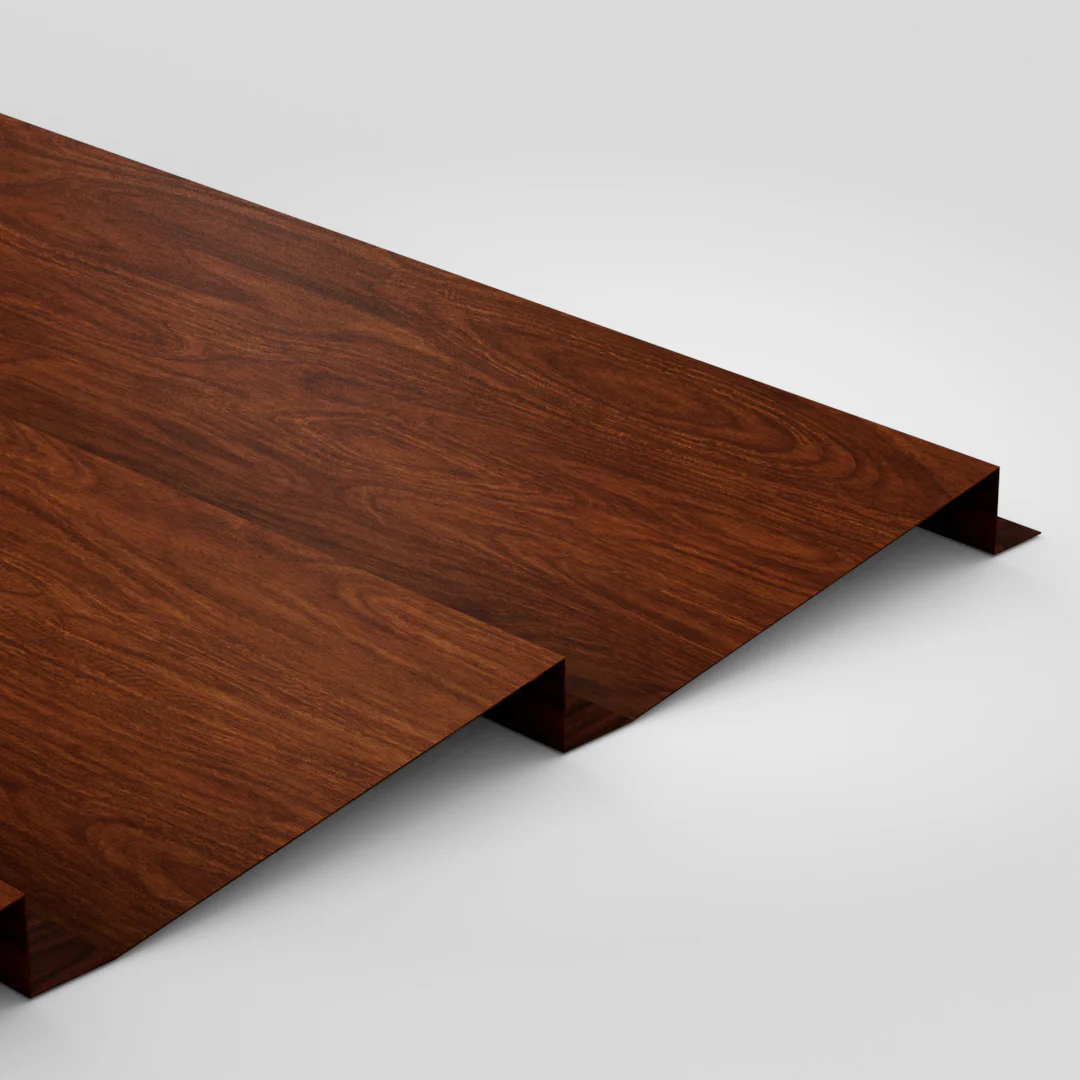

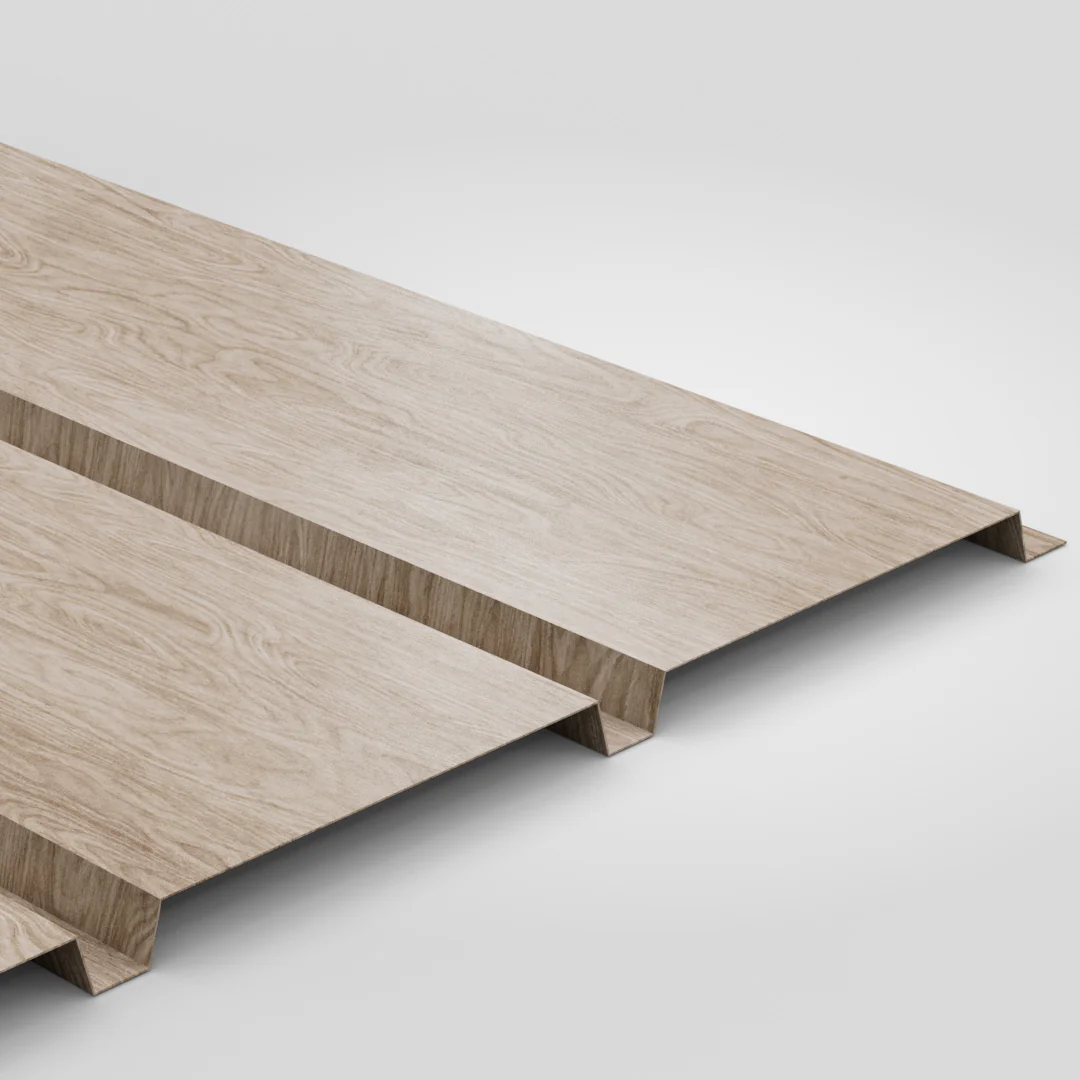

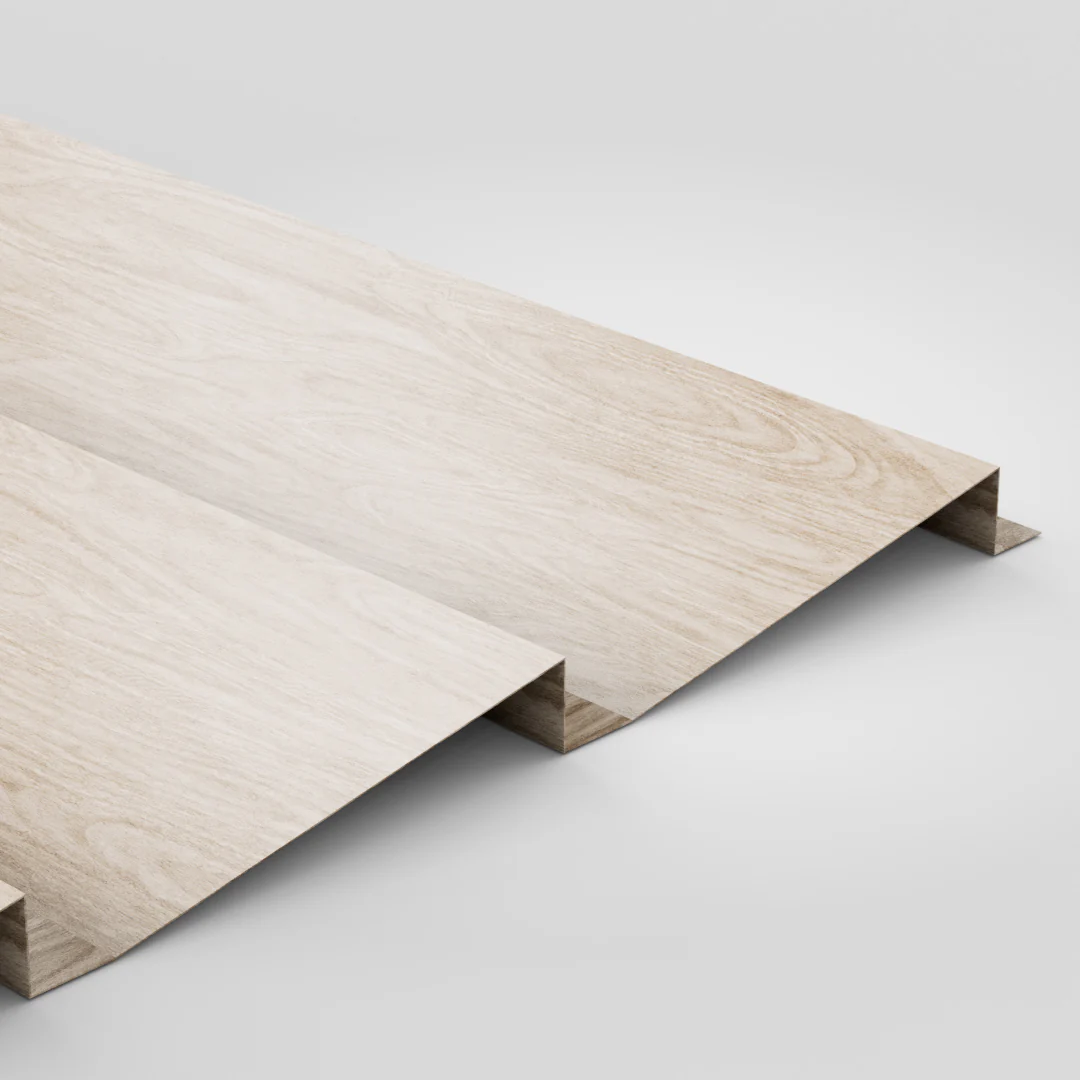

Plank Profile Woodgrain Steel Cladding Sheets
