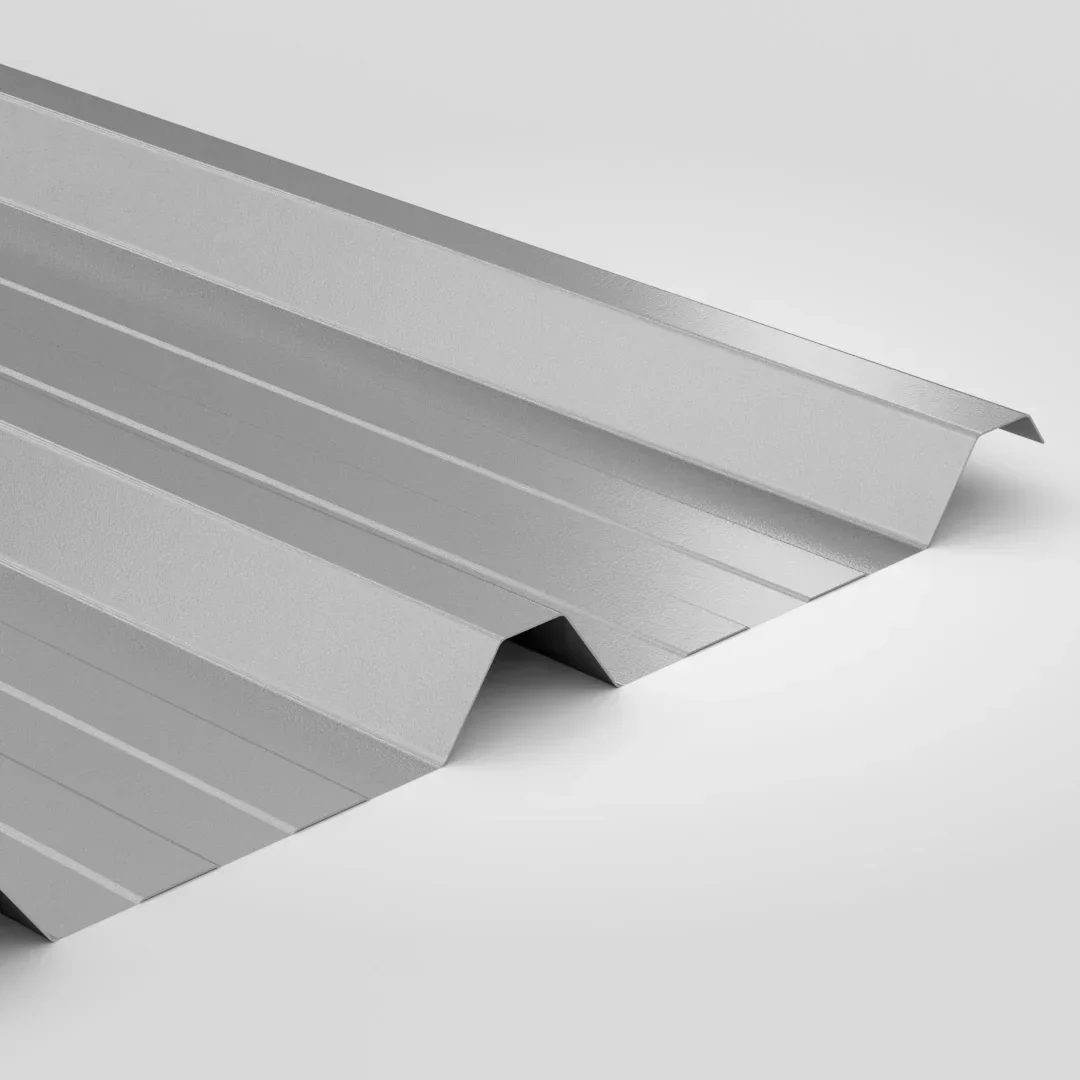

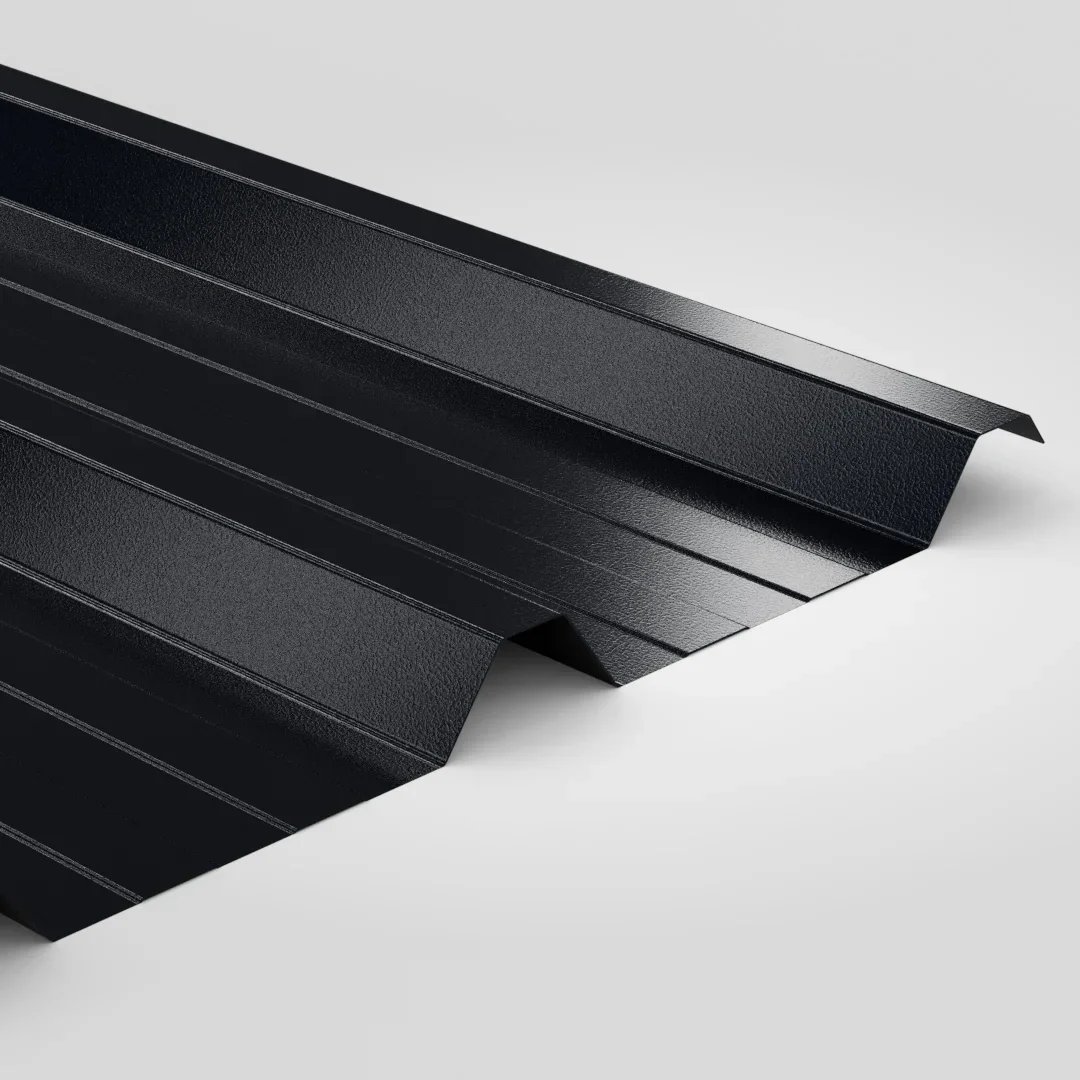

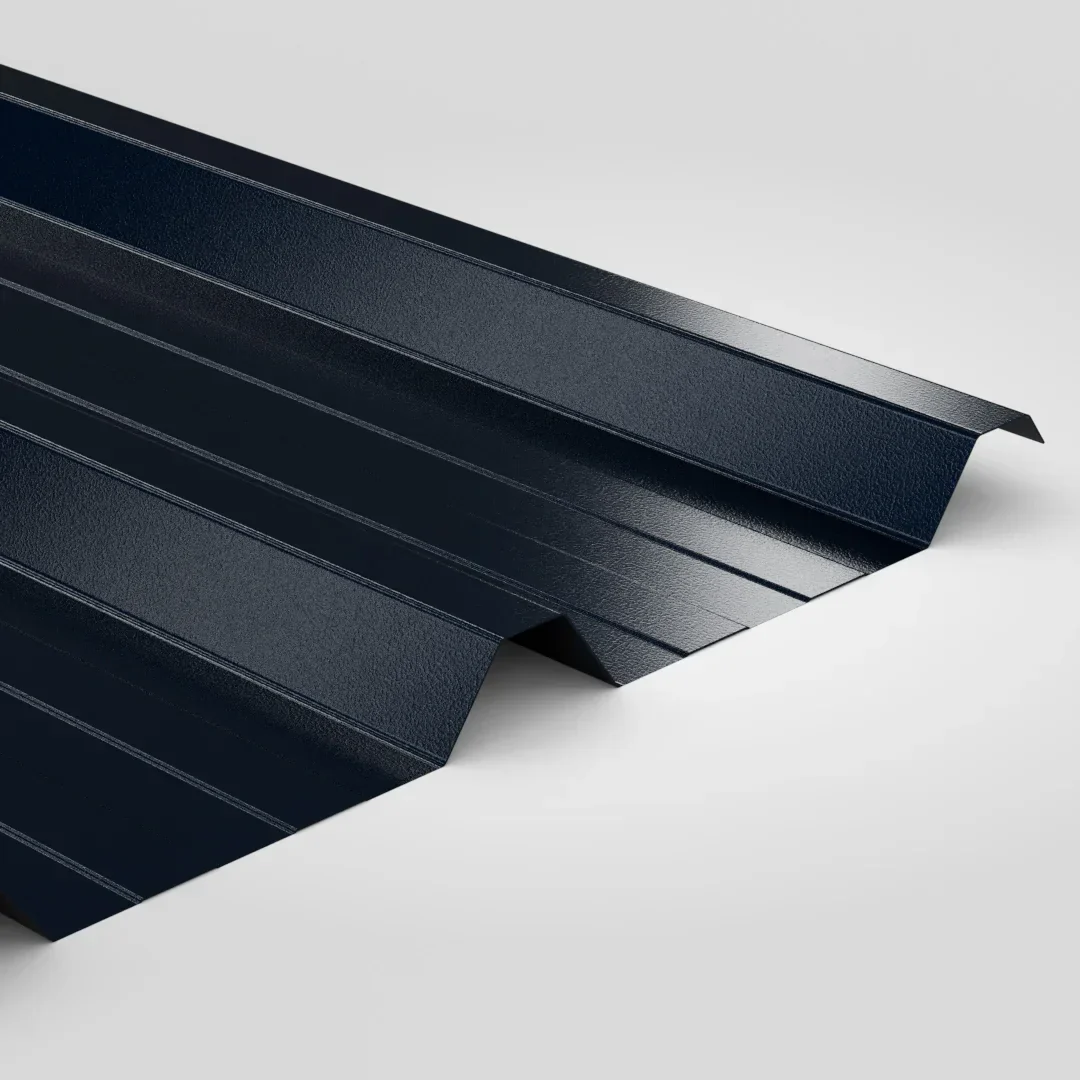

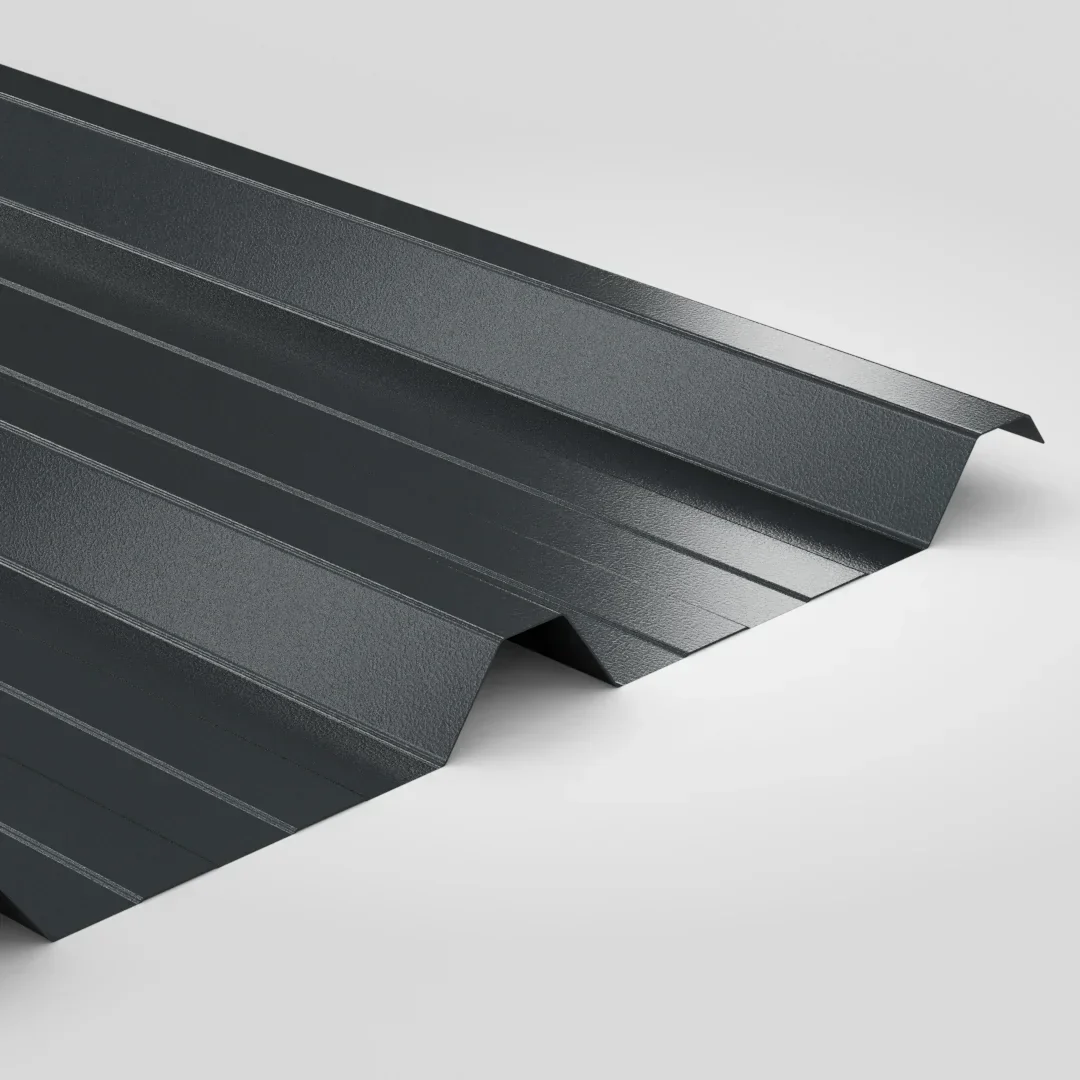

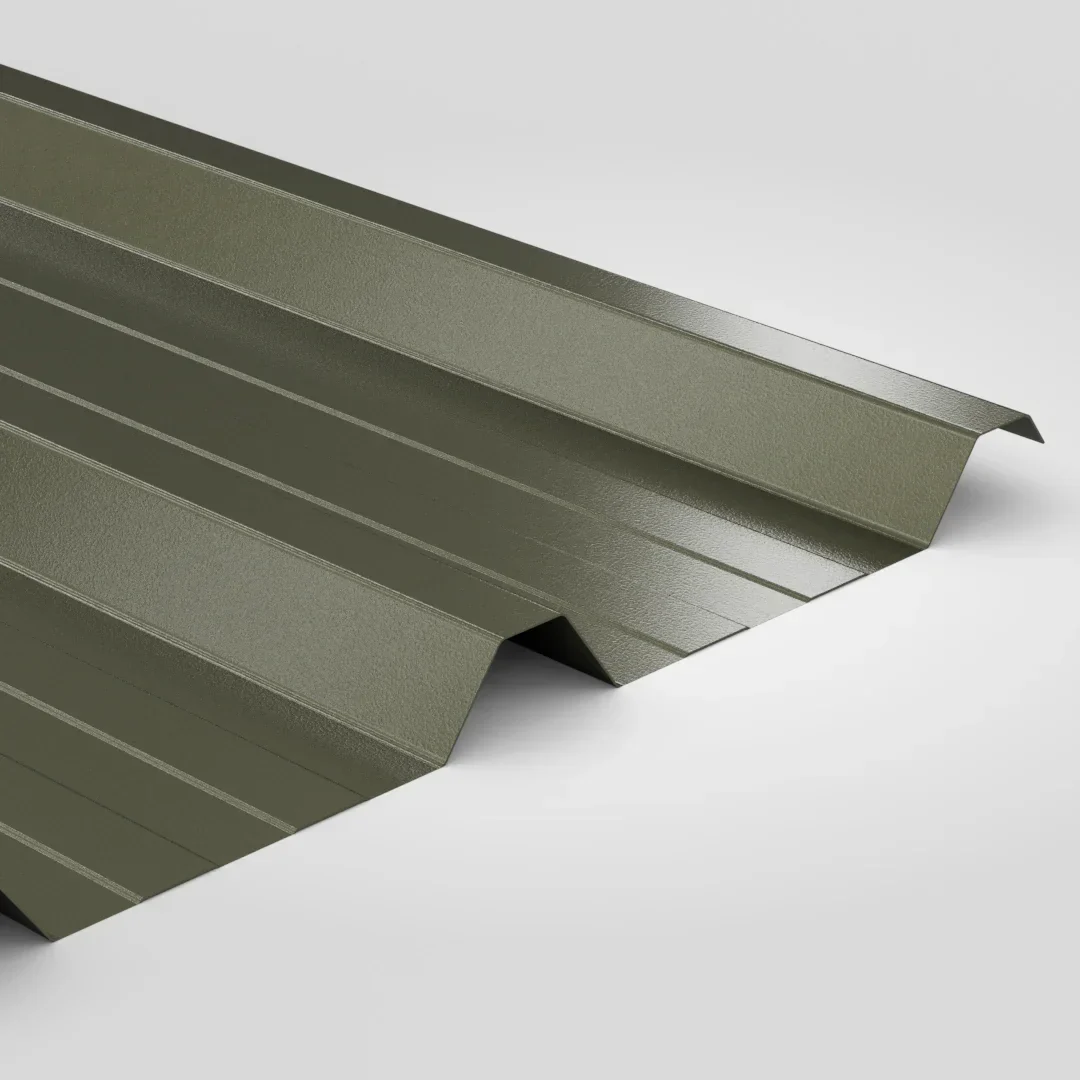

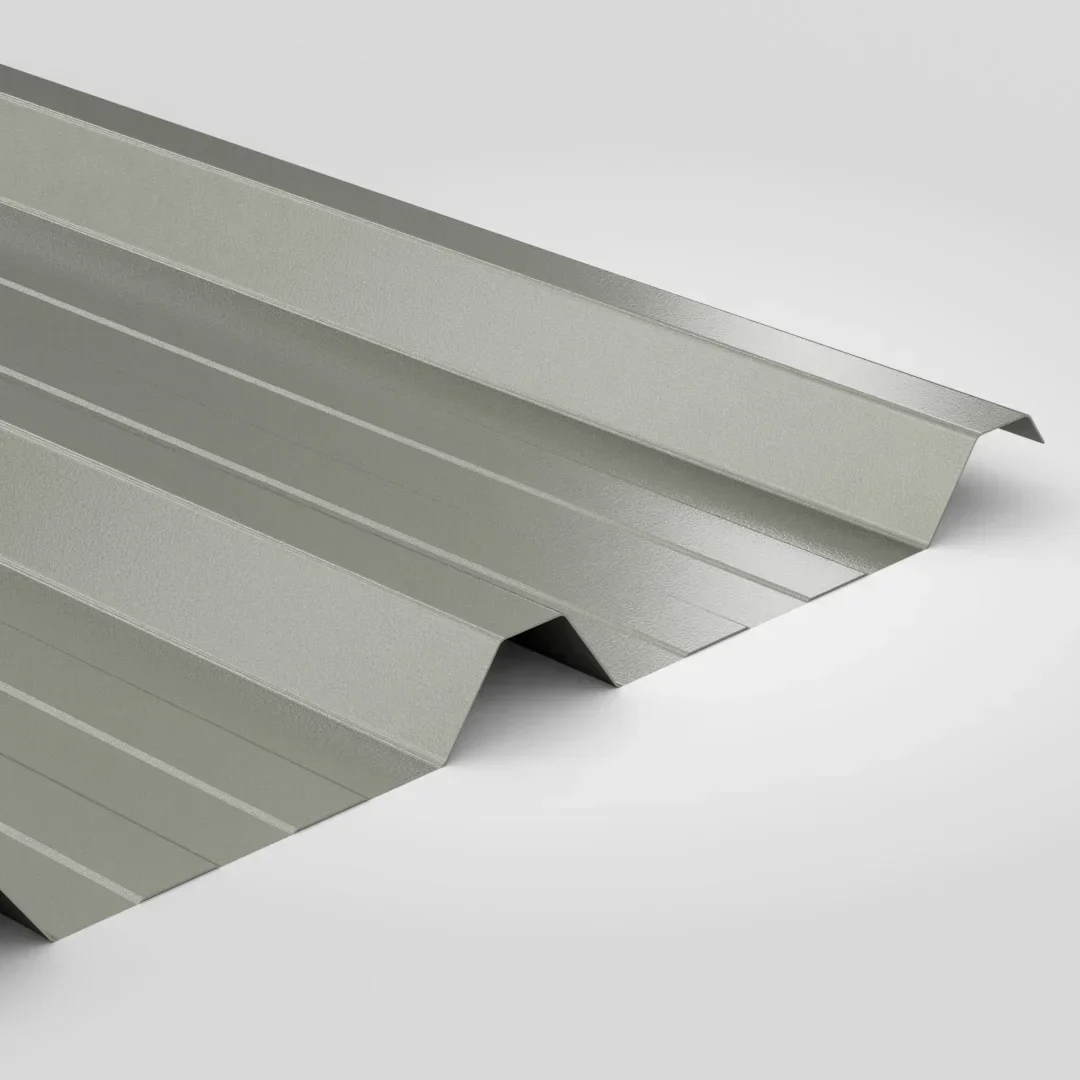

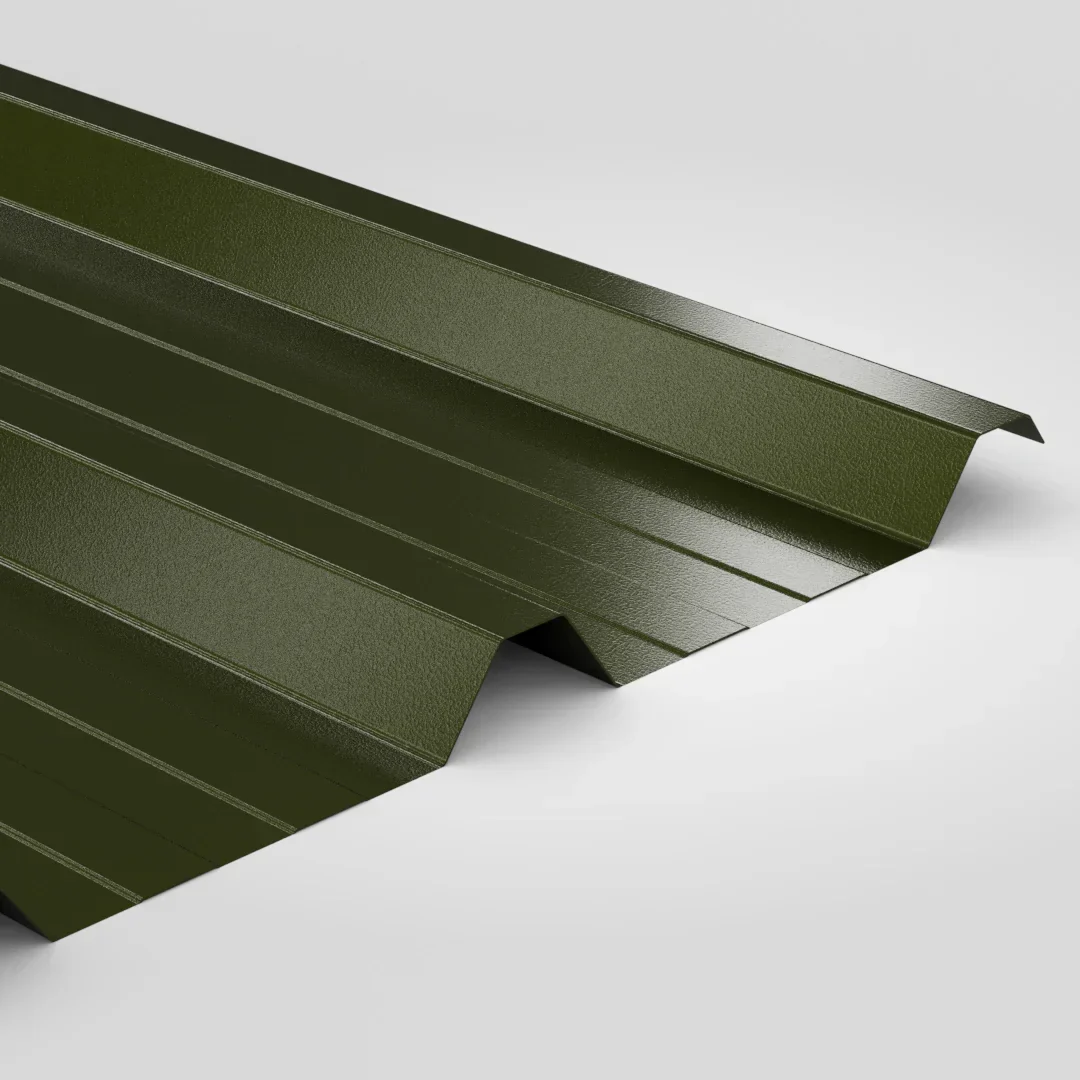

32/1000 Box Profile Roofing Sheet – PVC Plastisol Coated

The 32/1000 box profile pvc plastisol roof sheet is a tough steel option for agricultural, industrial and commercial roofs.

It is made from galvanised steel with a durable PVC Plastisol coated finish for reliable weather protection.

The result is a robust sheet that supports long-term performance in demanding outdoor conditions.

The 32mm profile depth provides dependable spanning strength without sacrificing a neat, modern look.

With a 1000mm cover width, it suits farm sheds, workshops, garages, storage buildings and industrial units.

Choose from a range of lengths to suit your build. Installation is straightforward for new builds or refurbishments.

Key Features

• 1000mm cover width for fast coverage
• Durable PVC Plastisol coated galvanised steel
• Strong 32mm box profile for spanning capability
• Suitable for agricultural and industrial roofing
• Minimum roof pitch from 5°
• Optional anti-condensation felt available
• Lengths available up to 7100mm

Technical Data

Use the specifications below to confirm compatibility with your purlin layout and project requirements.

This sheet is widely used across metal roofing sheets where strength and appearance both matter.

Cover width	1000 mm
Profile height	32 mm
Centre-to-centre distance	200 mm
Steel thickness	0.5 mm and 0.7 mm
Coating	PVC Plastisol coated galvanised steel
Minimum sheet length	1000 mm
Maximum sheet length	7100 mm
CE marking	BS EN 14782
Tolerances	BS EN 14782

Profile Dimensions

These dimensions help you plan lap details and coverage when ordering by length.

If you are matching an existing roof, they also assist when replacing like-for-like.

Cover width	1000 mm
Rib spacing	200 mm centres
Profile height	32 mm

Load / Span Table – Roof Profile

Loads in kN/m² | Spans in metres

Use the tables to gauge allowable spans for your 32/1000 box profile roof sheet installation.

For quick reference, this product is also commonly described as a 32/1000 roof sheet.

Imposed Load

Span Condition	1.20	1.30	1.40	1.50	1.60	1.70	1.80
1 Span	3.78	3.23	2.78	2.42	2.13	1.78	1.50
2 Span	2.72	2.38	2.10	1.86	1.67	1.50	1.36
≥3 Span	3.29	2.88	2.55	2.27	2.03	1.83	1.66

Wind Suction

Span Condition	1.20	1.30	1.40	1.50	1.60	1.70	1.80
1 Span	3.27	2.78	2.40	2.09	1.84	1.63	1.45
2 Span	2.99	2.62	2.32	2.07	1.85	1.67	1.51
≥3 Span	3.61	3.17	2.81	2.50	2.25	2.03	1.84

Always check both imposed load and wind suction when determining allowable spans for roof sheets.
