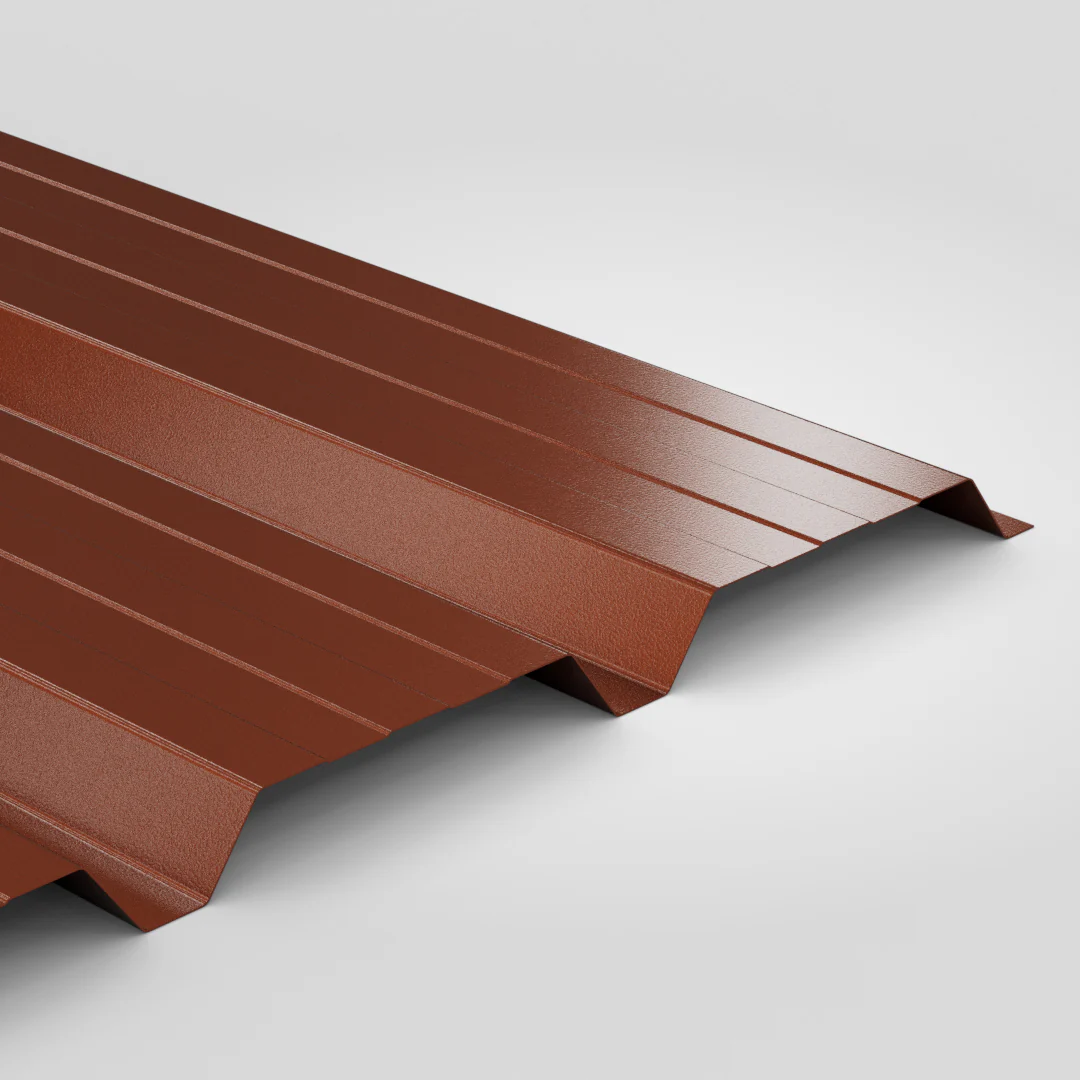

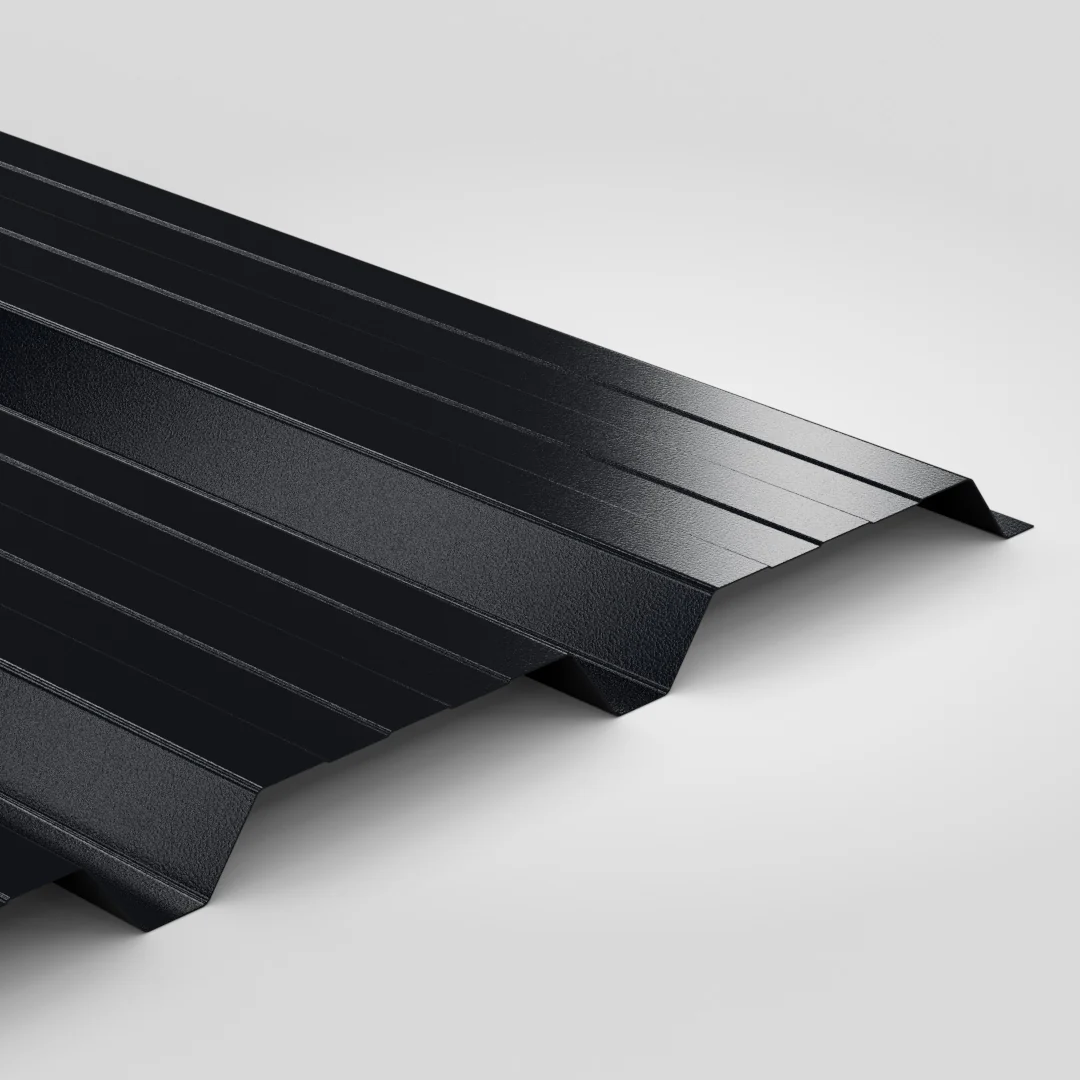

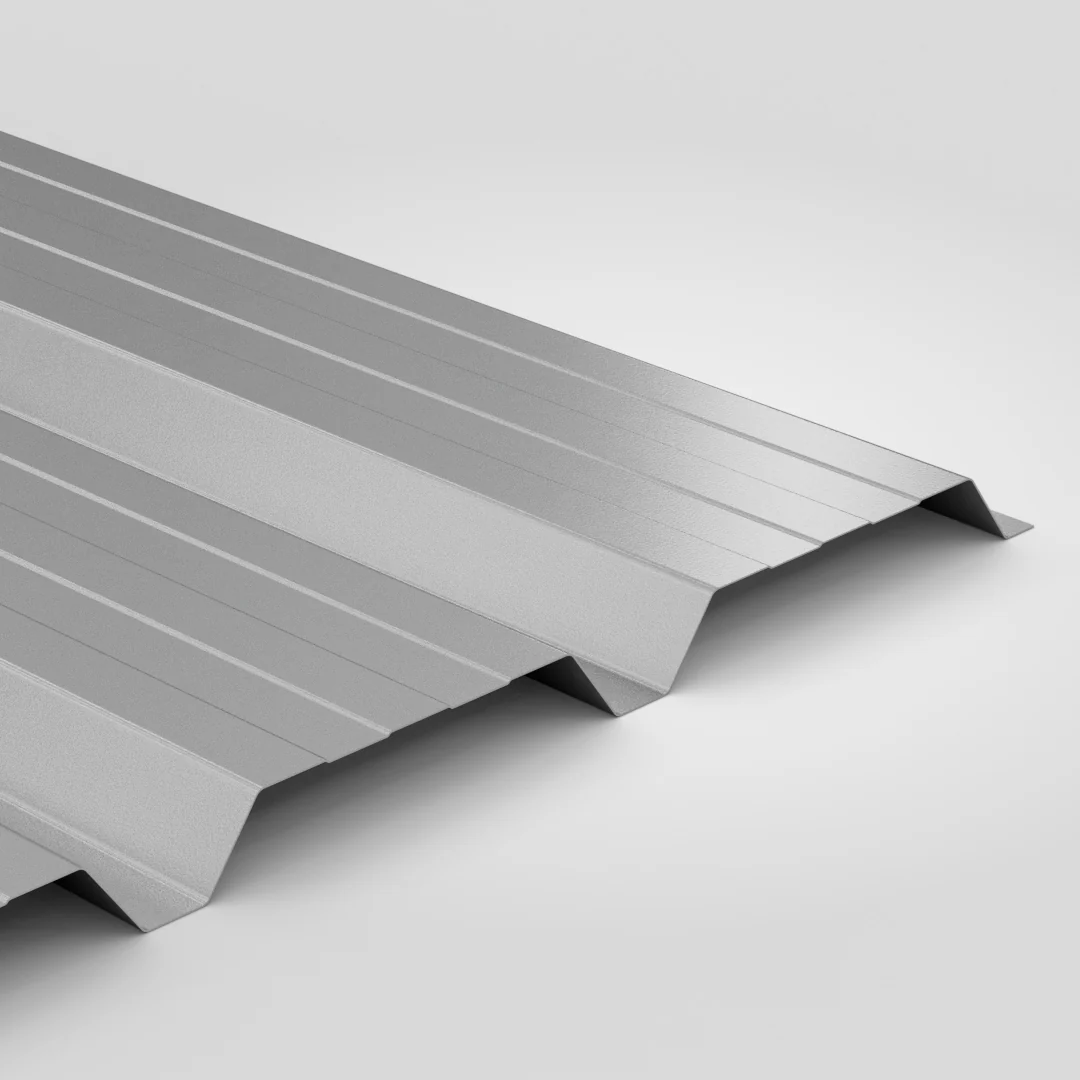

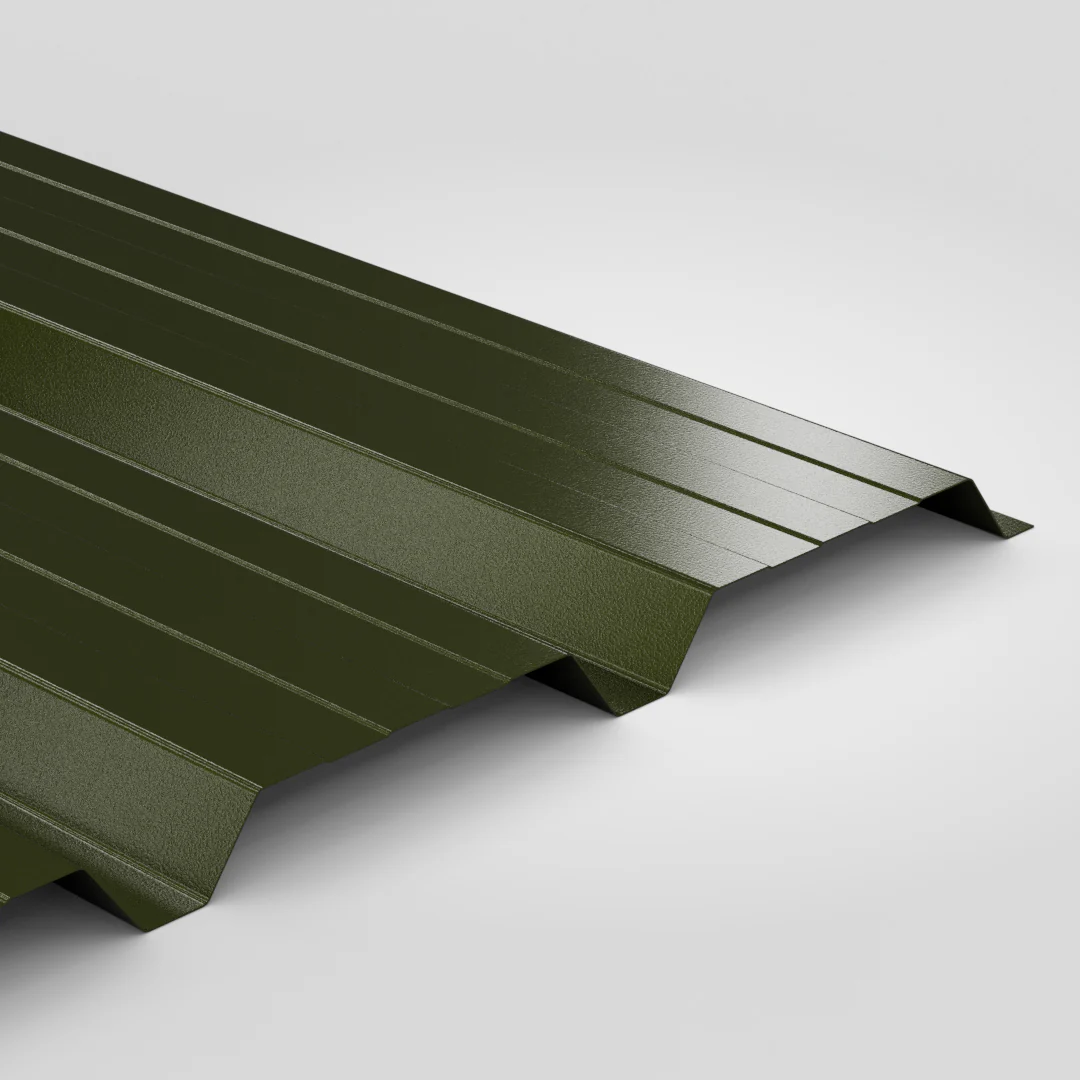

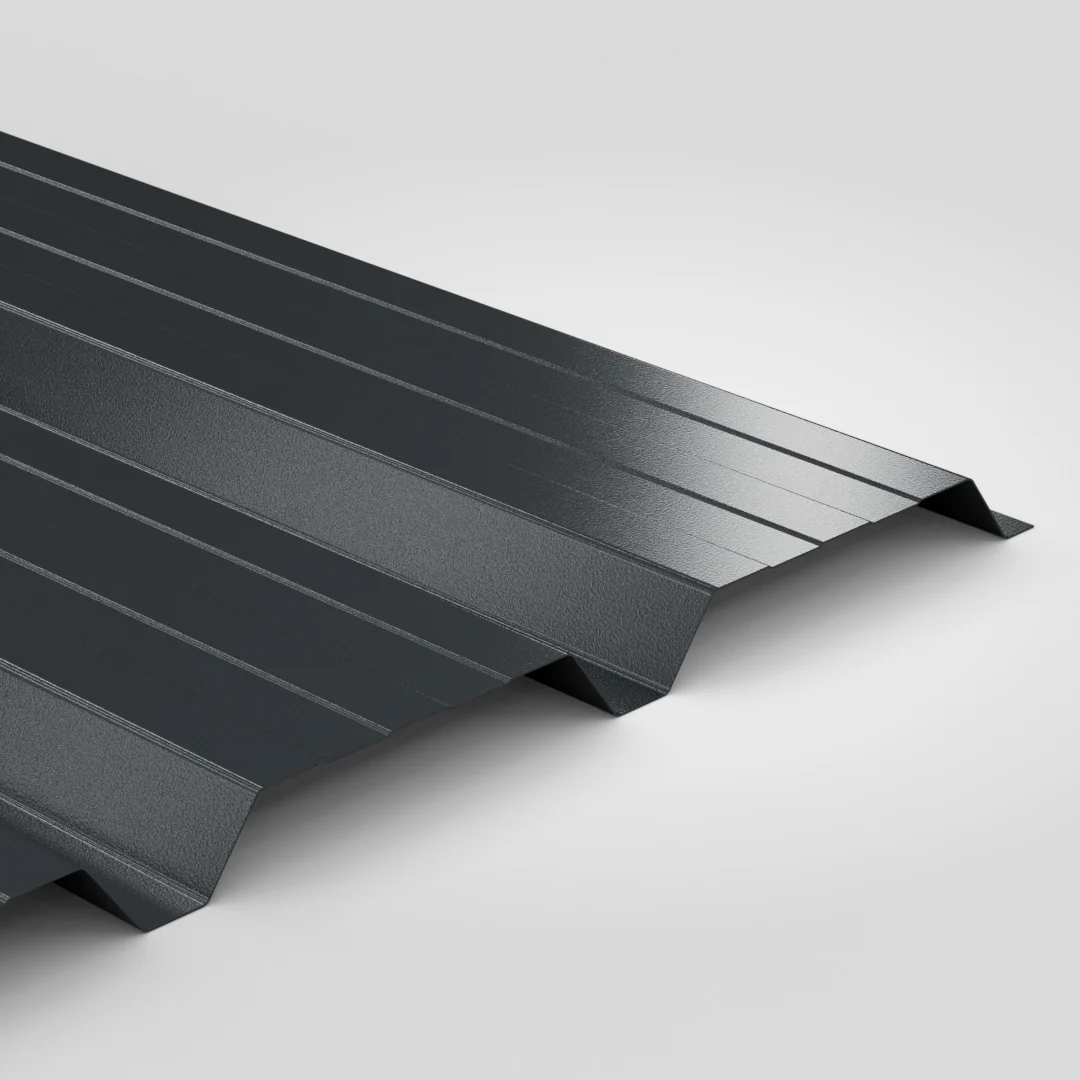

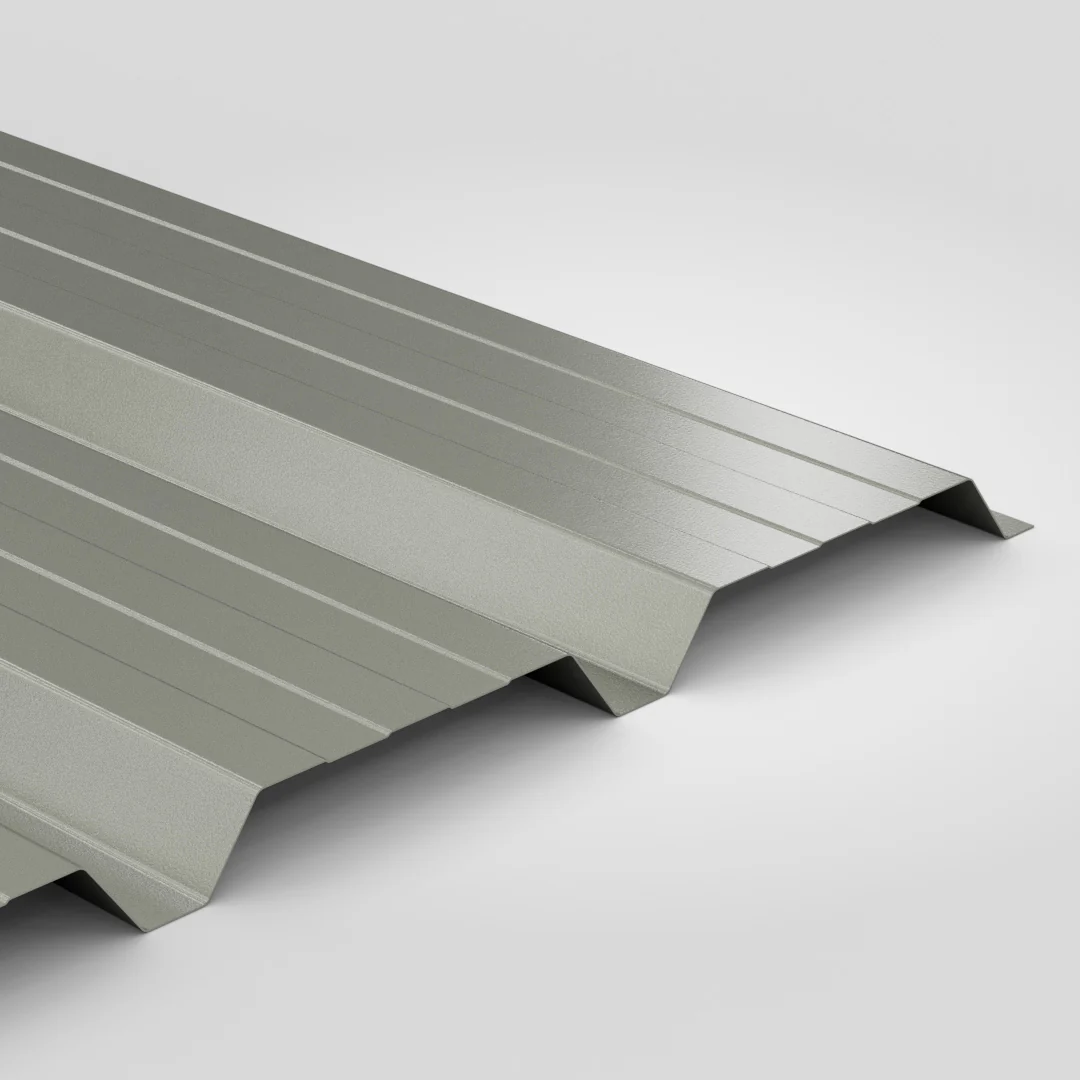

32/1000 Box Profile Wall Cladding Sheet – PVC Plastisol

The 32/1000 Box Profile Wall Cladding Sheet is a durable steel cladding solution designed for agricultural, industrial and commercial buildings. Manufactured from galvanised steel with a tough PVC Plastisol coated finish, these sheets provide excellent weather resistance and long term durability.

The 32mm profile depth provides strong structural performance while maintaining a clean and modern appearance. With a 1000mm cover width, these sheets are ideal for wall cladding on farm sheds, industrial units, garages, workshops and storage buildings.

The profile can be installed vertically or horizontally depending on building design and aesthetic requirements.

Key Features

• 1000mm cover width
• Durable PVC Plastisol coated galvanised steel
• Strong 32mm box profile
• Suitable for vertical or horizontal wall cladding
• Lengths available up to 7100mm
• Fast and simple installation

Technical Data

Cover width	1000 mm
Profile height	32 mm
Centre-to-centre distance	200 mm
Steel thickness	0.5 mm and 0.7 mm
Coating	PVC Plastisol coated galvanised steel
Minimum sheet length	1000 mm
Maximum sheet length	7100 mm
CE marking	BS EN 14782
Tolerances	BS EN 14782

Profile Dimensions

Cover width	1000 mm
Rib spacing	200 mm centres
Profile height	32 mm

Load / Span Table – Wall Profile

Loads in kN/m² | Spans in metres

Positive Load

Span Condition	1.20	1.30	1.40	1.50	1.60	1.70	1.80
1 Span	3.27	2.78	2.40	2.09	1.84	1.63	1.45
2 Span	2.99	2.62	2.32	2.07	1.85	1.67	1.51
≥3 Span	3.61	3.17	2.81	2.50	2.25	2.03	1.84

Negative Load

Span Condition	1.20	1.30	1.40	1.50	1.60	1.70	1.80
1 Span	3.78	3.23	2.78	2.42	2.13	1.89	1.68
2 Span	2.72	2.38	2.10	1.86	1.67	1.50	1.36
≥3 Span	3.29	2.88	2.55	2.27	2.03	1.83	1.66

Always check both positive and negative load when determining allowable spans for wall cladding sheets.
